MCP

Introduction

• MCP(Model Context Protocol) is a protocol that standardizes how applications provide context to LLMs.
• Just like micro-services

Why MCP?

• MCP helps you build agent and complex workflows on top of LLMs
• Allow you to connect MCP host to external systems and data sources

User

• User need to provide hint for LLM to trigger the MCP function
• 由llm去理解用戶的意圖，佢會自動安排workflow

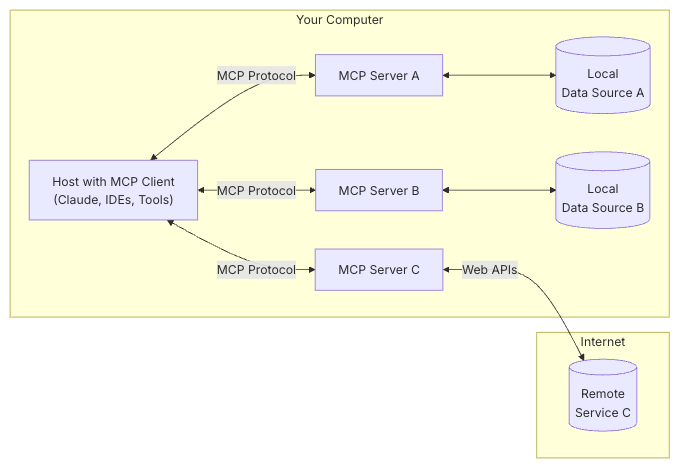

General Architecture

• MCP Host: Program like Claude Desktop, IDEs, or AI tools that want to access data through MCP
• MCP Client: Protocol clients that maintain 1:1 connection with server
• MCP Server: Lightweight programs that each expose specific capabilities through the standardized MCP, running locally
• Local Data Source: Your computer's files, databases, and serices that MCP servers can access
• Remote Service: External system available over the internet (e.g. through APIs) that MCP servers can connect to

Flow

a -> MCP Server -> b(query + prompt) -> LLM -> answer

Transport

• stdio Transport 1
• SSE Transport

Use Cases

1. Chat Summarization

   • Store chat history in local data source

   • Use SELECT to export chat history to MCP server

   • Security Concern:

     • Data privacy
     • Context Length Limitation

2. For DevOps to update the node version of all nodes in the cluster

   • Use SSE

MCP Server -> Workflow -> LLM e.g. Check flight ticket on Trip.com -> Buy ticket -> Send trip details to email -> Share to Whatsapp group

Termnology

1. JSON-RPC

• Use in microservice
• 如何实现一个rpc框架
  • https://juejin.cn/post/7159432042747265054

2. RPA
   • Robotic Process Automation

Resource

Github MCP Server

• https://github.com/modelcontextprotocol/servers MCP Client
• https://github.com/punkpeye/awesome-mcp-clients Opensource from idoubi
• https://github.com/chatmcp MCP.so
• https://mcp.so/

mcp-server-flomo

1. start mcp-server SDK
2. call flomo API
3. workflow -> client(cursor) -> rpc -> mcp-server-flomo

Debugging

1. Use Inspector https://modelcontextprotocol.io/docs/tools/inspector

cd mcp-server-flomo
npm run build
npm run watch
npm run inspector

2. mcp-cli
3. MCP Client

Setup MCP in Cursor

{
  "mcpServers": {
    "mcp-server-flomo": {
      "command": "node",
      "args": [
        "/Users/hoimingkenny/Project/mcp-server-flomo/build/index.js"
      ]
    }
  }
}

Flomo

Create Memo

curl -X POST https://flomoapp.com/iwh/MjI4MjczNA/0808e155c2ddd0763643ed3712e448b9/ -H 'Content-Type: application/json' -d '{"content": "Hello, flomo Im using API"}'

{
  "code":0,
  "message":"\u5df2\u8bb0\u5f55",
  "memo":{
    "creator_id":2282734,
    "source":"incoming_webhook",
    "content":"<p>Hello, flomo Im using API<\/p>",
    "tags":[],
    "updated_at":"2025-04-28 19:57:18",
    "created_at":"2025-04-28 19:57:18",
    "linked_memos":[],
    "linked_count":0,
    "slug":"MTczNjEyNTY0"
  }
}

Fetch Memo

• Not officially supported in Flomo
• use go-rod

Cursor Shortcut

• CMD + K: Generate new code or edit existing code in the editor window
• CMD + L: Open the chat
